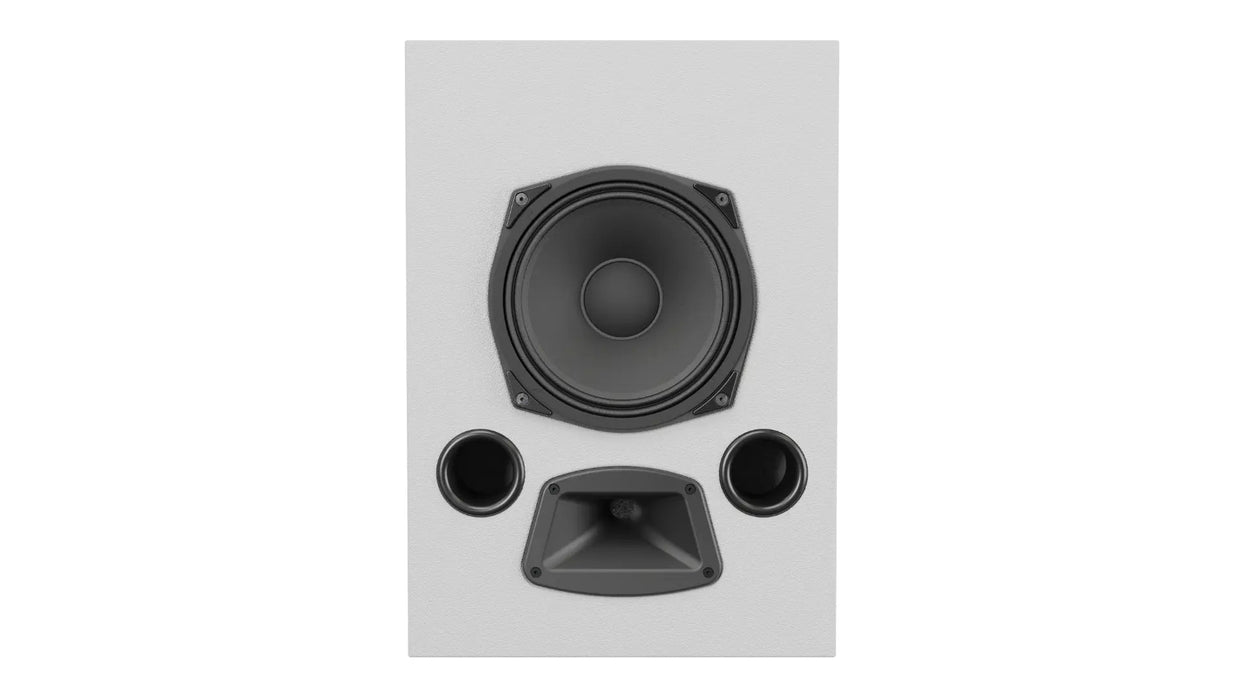

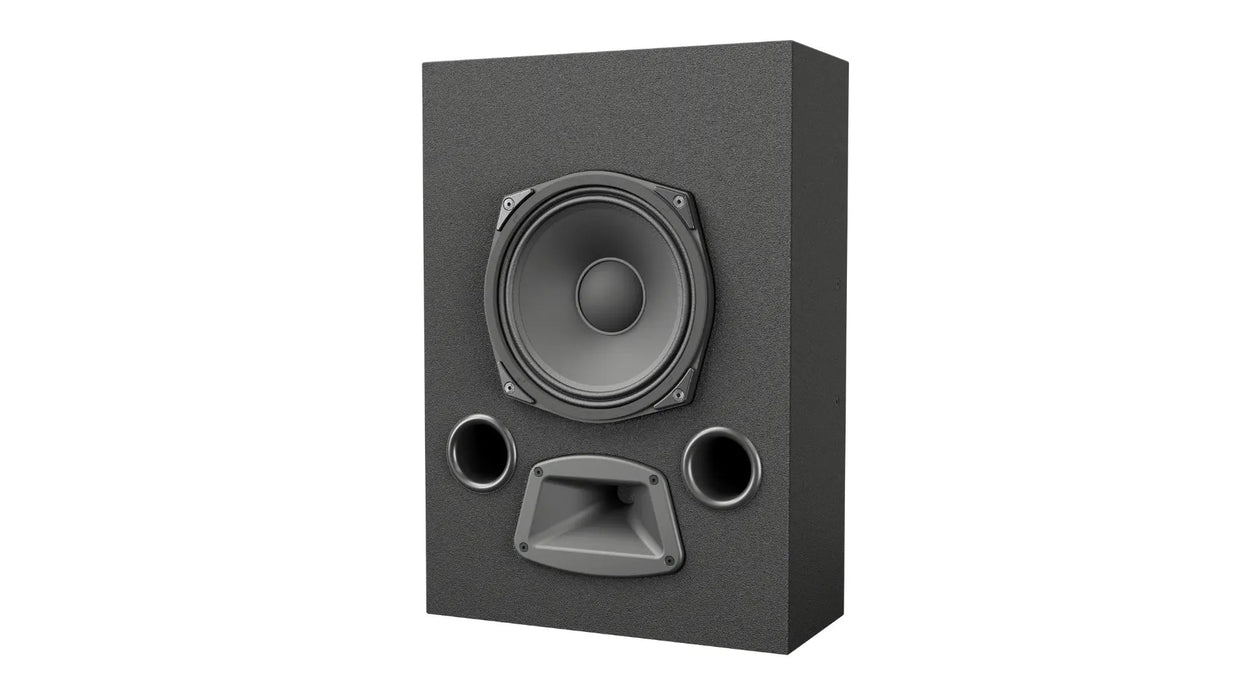

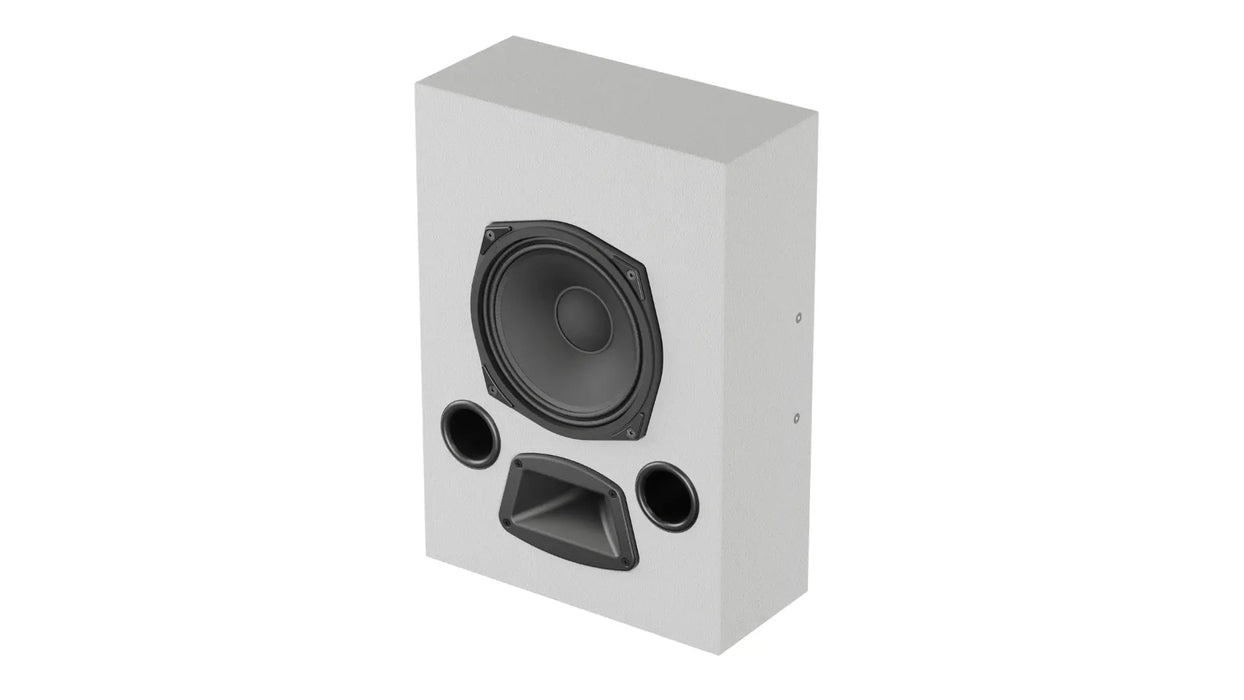

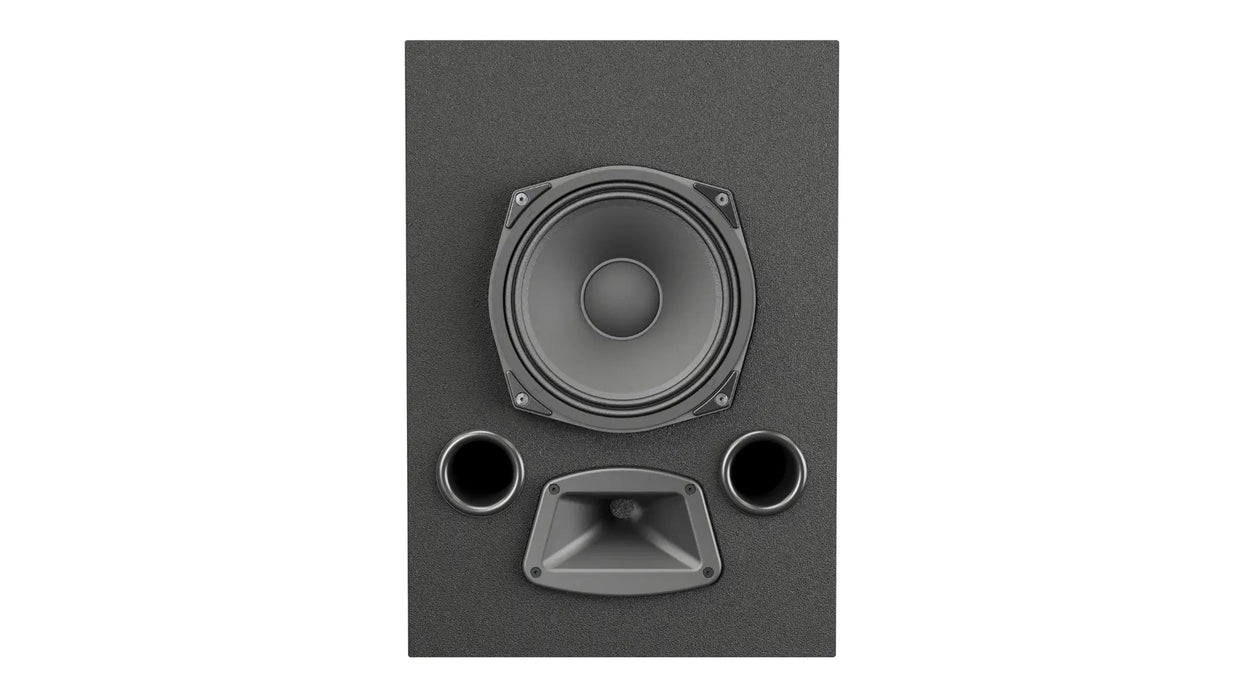

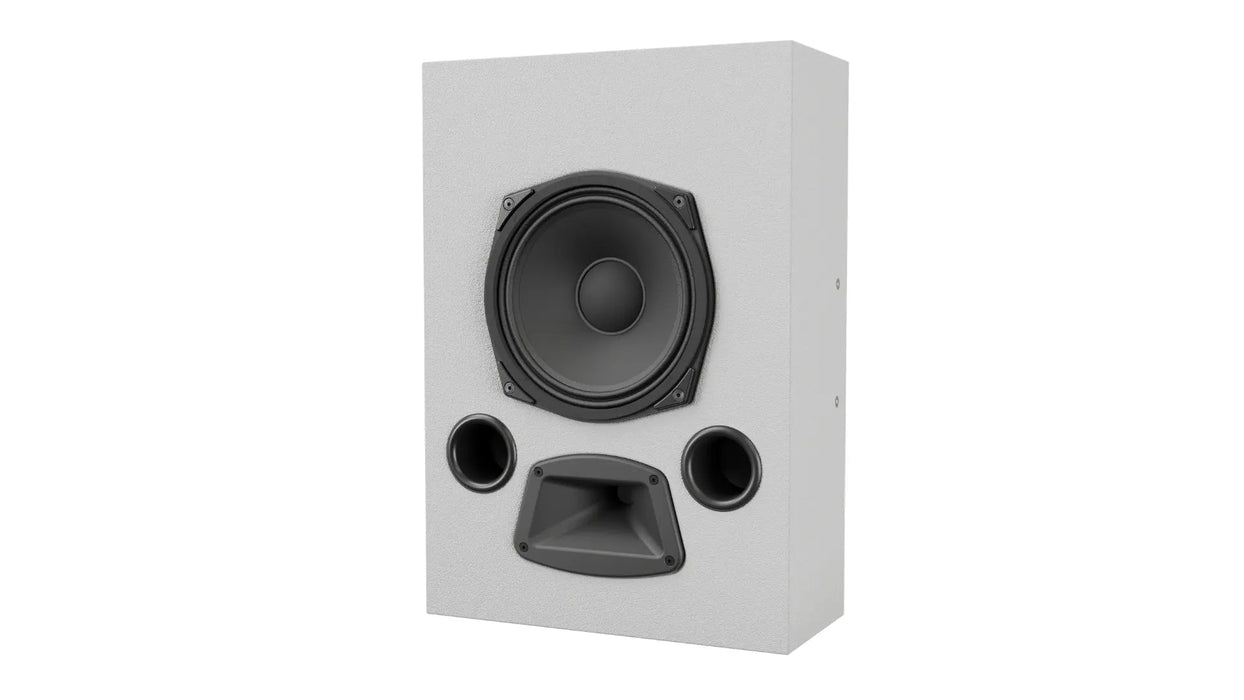

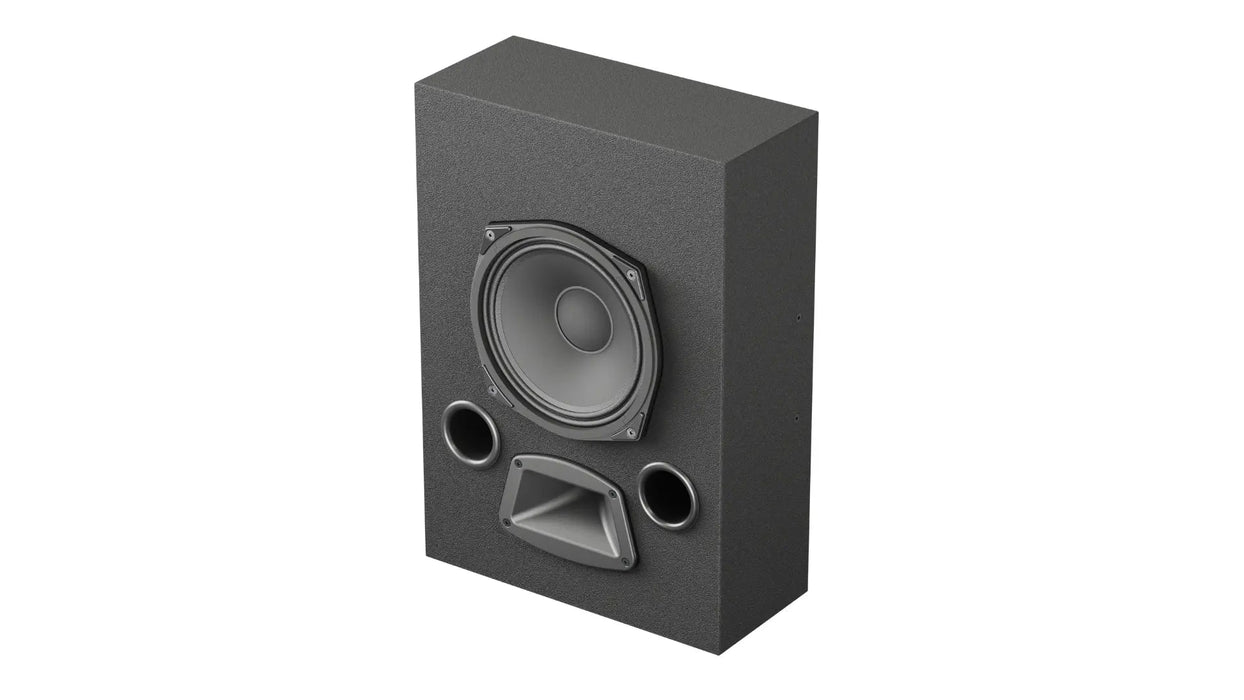

MAG Theatron S8
Wall Surround Speaker
- Components: 8″/1″
- Frequency range: 65 – 22000 Hz
- Max continuous SPL: 118,5 dB
-
Power rating: 200 W
Theatron Performance surround speakers are characterized by particularly compact cabinet dimensions. This means more space and a better sound experience without compromise. Professional technology that is visible and audible.
The compact surround system is small enough to fit the wall niches. The powerful 8” woofer matches the screen speaker's performance and creates a 360° immersive environment.
The HF horn with Coverage Control technology beams down directly to the listening position without tilting the speaker.

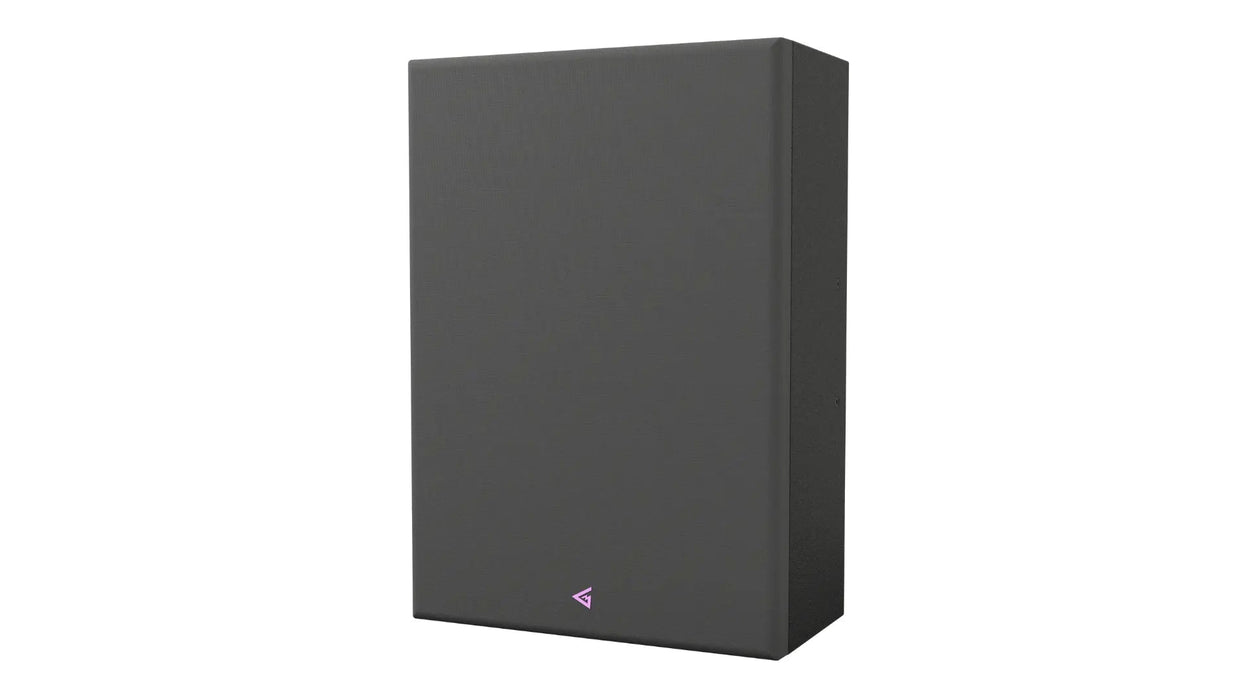

The magnet-held frontal grill can be easily removed to decrease depth even further for in-wall installation scenarios.
Technical Data
| Frequency response (±3 dB), Hz | 75 – 20000 |
| Frequency range (-10 dB), Hz |
65 – 22000 |
| Max continuous SPL, dB | 118.5 |
| Sensitivity (1W/1m, half-space), dB | 95.5 |
| High-frequency driver | 0,75-inch (1,5-inch voice coil) titanium dome |
| Low/Mid frequency woofer | 8-inch (2-inch voice coil) |
| Coverage | 60°-90° H / +5 -35° V coverage control HF horn vertical axis tilted 15° down |
| Nominal impedance, Ohm | 4 / 8 / 16 |
| Power rating***, W | 200 |

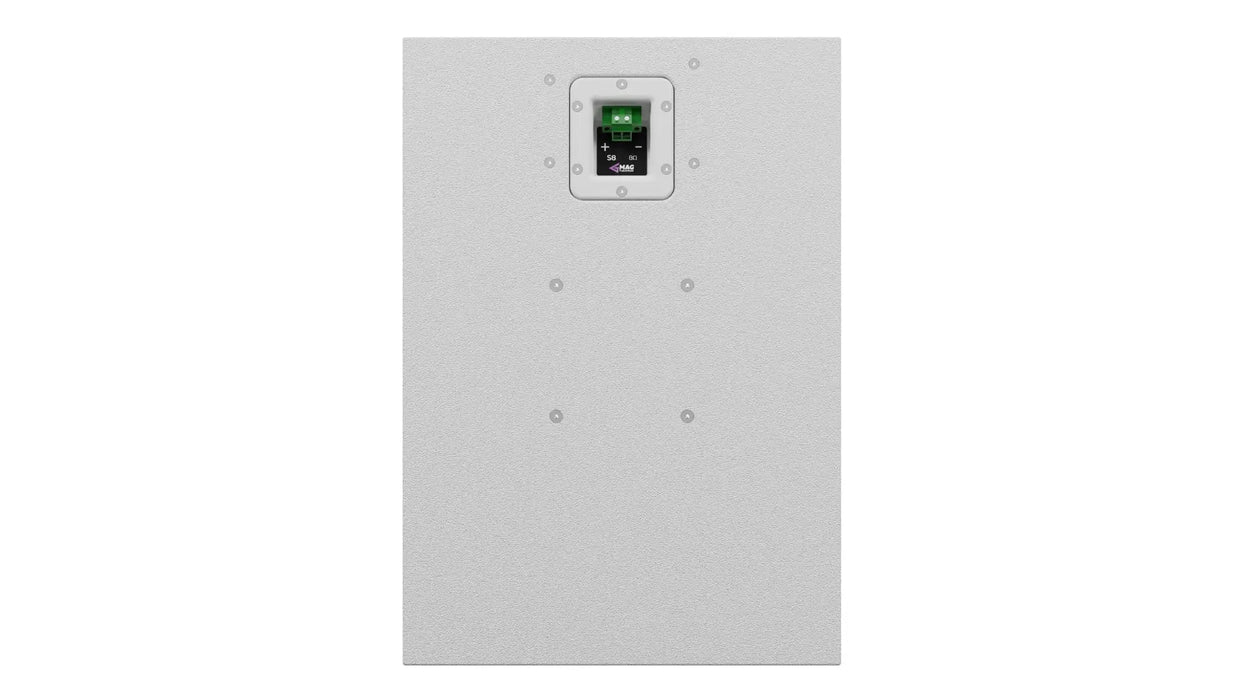

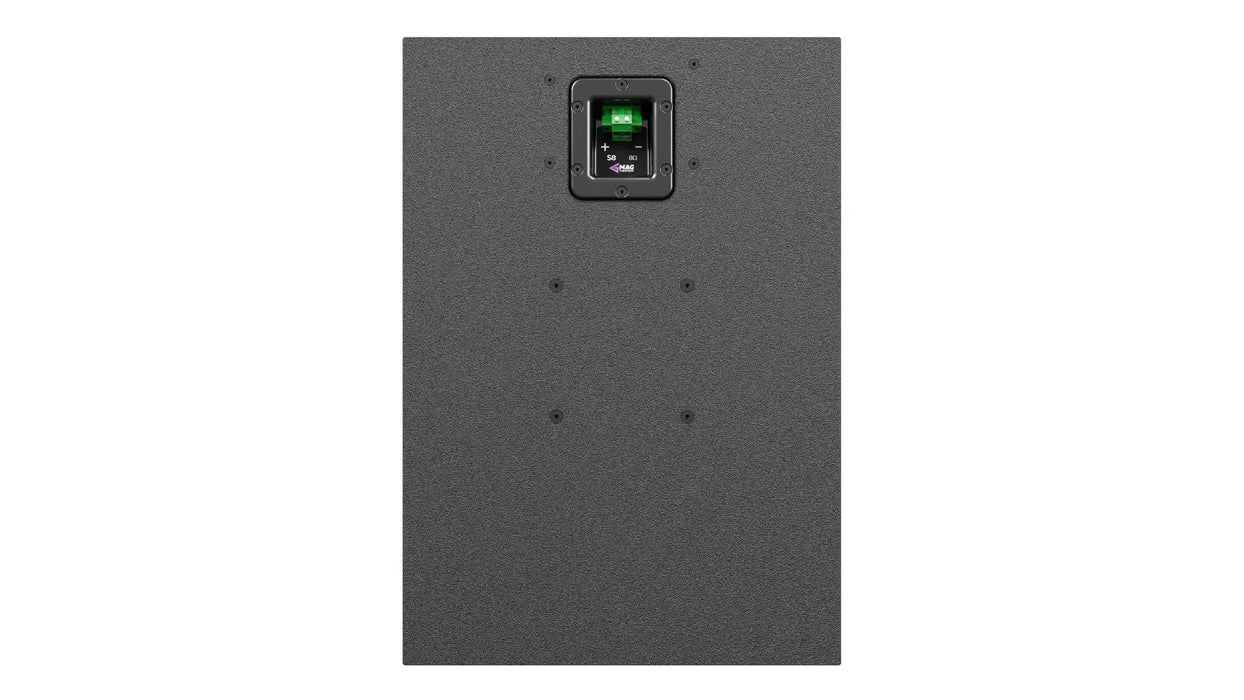

| Mounting | VESA 100 x 100, 4x M5 side points for specially designed mounting, removable grill |
| Connectors | Phoenix terminals |
| Dimension (WxHxD), mm | 335 x 480 х 177 |
| Net weight, kg | 7 |
* - dBSPL, IEC 60268-5 pink noise, 1W / 1m, half- and free- space
** - dBSPL RMS, IEC 60268-5 pink noise, measured on nominal power
*** 2-hour power test, IEC filtered noise, 6 dB crest factor
